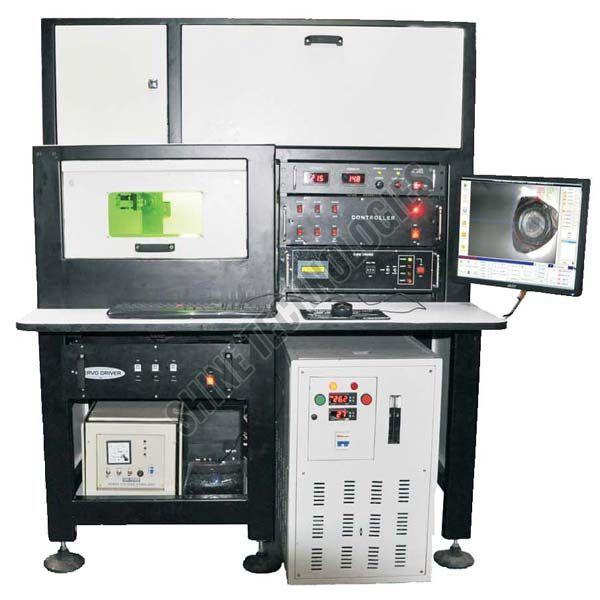

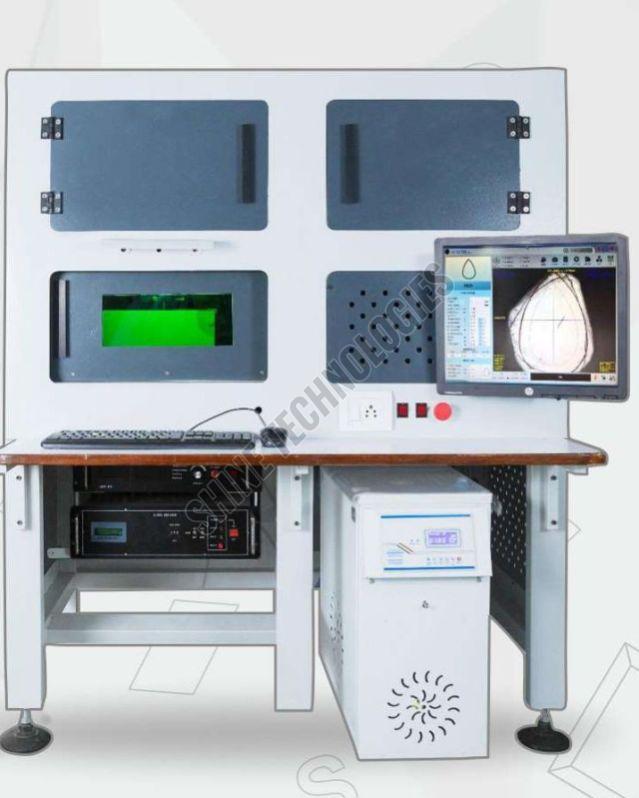

4P Diamond Bruiting Lasermax Machine


4P Diamond Bruiting Lasermax Machine

MOQ : 1

Business Type Manufacturer, Exporter
Type Diamond Bruting Machine
Weight 100-1000kg
Color Black, Grey
Click to view more

Preferred Buyer From

Location Worldwide

Product Details

Voltage
220V
Automatic Grade
Automatic
Driven Type
Electric
Warrenty
2years

The company is the noted Manufacturer & Exporter of highly efficient 4P Diamond Bruiting Lasermax Machine. We make use of high-grade parts and components for the manufacturing of the machine. The entire production process is carried out under the supervision of experts, thus there are minimal chances of defects at buyer’s end. Owing to attributes like excellent performance, sturdy construction, low maintenance, etc. our 4P Diamond Bruiting Lasermax Machine is widely in demand.



Technical Specification :

  • Laser System :
    • DPSS (ND: YAG Diode Pumped)
    • Diode Module: Northrop, Premium, Premium Plus
    • 1064nm Wavelength
    • Tem00 Mode
    • 24watt Q-switched Output @ 10 KHz
    • 1 to 25 KHz Pulse Repetition Rate
  • CNC System :
    • 135×135×75mm Axis Travel
    • 6250 Steps/mm Resolution
    • 2µ Accuracy
    • Repeatability 3µ/25µ Bidirectional
    • AC Servo Driver of  standard company like Panasonic, Fuji
  • Computer System :
    • Intel Pentium Core Processor CPU
    • 2GB RAM
    • 80GB Hard Disk
    • Keyboard- Mouse
    • 17" LCD Screen Monitor
  • Electrical Supply :
    • Single Phase 230V AC
  • Room Temperature :
    • 18° to 30° C
  • Dimension :
    • 4ft Length × 3ft Width × 5ft Height
  • Electronics :
    • RF Driver
    • Single Phase Power Supply
    • Common Controller
    • Cooling System:
    • 230V Single Phase

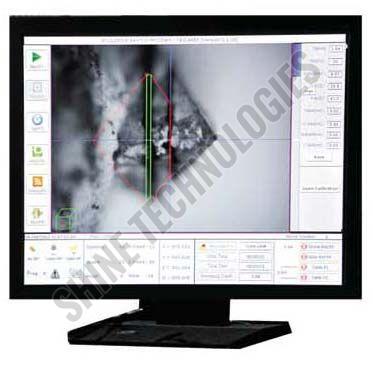

Software Features :
4 Process Program Facilities :

  • Parameter wise Auto Frequency set for Good Quality
  •  Fully automization of light, Air, Laser Beam Control, Ampere Setting and auto frequency
  • Diameter wise setting of  margin in Table
  • Diameter wise setting of  Parameter and current
  • Separate saw file for range of diameter of diamonds
  • Separate parameter file for each application (Table, Crown, Bruiting, Cone)
  • Diameter Increase & Decrease as per marking
  • Very Easy to Operate Software by operator
  • When Power failure then after by restarting  PC software automatically restore last cutting data
  • Average 250 to 300 Diamond cut in 12 hours (it’s depend on size)


Other Features :

  • Good Quality and stability of the Laser beam throughout working range from 4 to 12 watt
  • Very low breakage
  • Power saving compared to 3 phase Lamp Pump Laser Machine
  • Chiller with inbuilt Compressor
  • Highly accurate X-Y-Z Axis Servo motor of standard company like Panasonic, Fuji
  • USB based motion driver
  • Very low cost operating

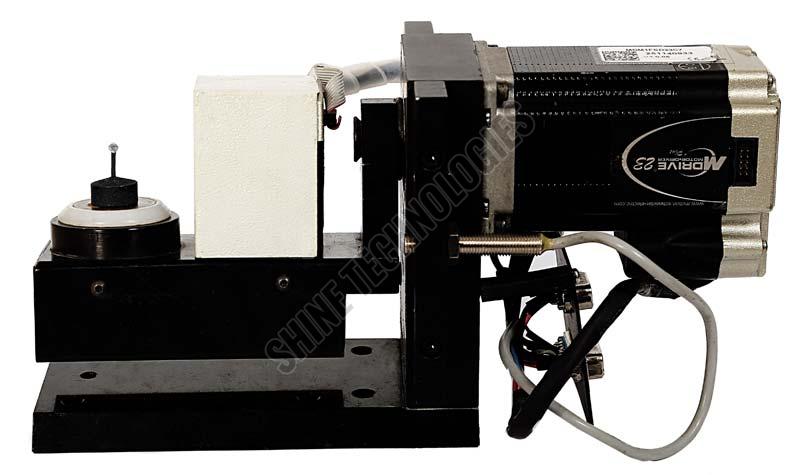

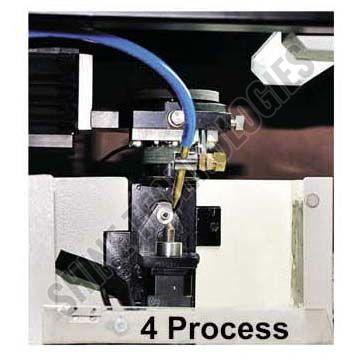

4Process Fixture’s Features :

  • High Speed motor for good quality and Production
  • Small in size
  • Standard company’s motor is used(Mdrive23 Plus and Mdrive17)
  • Few Specifications of Mdrive motors :
    • Single Supply:from +12 up to +75VDC or 120 and 240 VAC
    • 20 microstep resolutions up to 51200 steps
    • Highly integrated microstepping drive and high torque 1.8° 2-phase stepper motor
    • Graphical user interface provided for quick and easy parameter setup

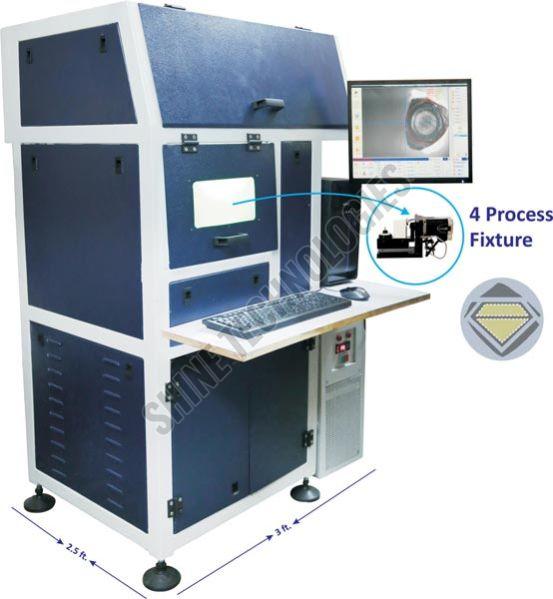

we have recently launched Tiny 4P version of  4P Diamond Bruiting Lasermax Machine and you can check the Image below and has specification as earlier model but vary in size
