Motion Control Cards

Details :

• Super Speed USB3.0 Connection
• Transfer Data Rate up to 5 Gbit/s (625 MB/s)
• Xilinx Spartan- 6 FPGA
• Individual Pulse, Direction, Home Sense, Alarm Sense, End Limit Positive, End Limit Negative, Software Limits, High Speed Limit
• All Sensors and Limits Logic can be changed through Programming
• All Sensors and Limits can be Enable or Disable.
• 8 Digital Inputs
• 8 Digital Outputs
• 1 Analog Output ( 0 to 10 V)
• 1 PWM Output
• Buffer Run Command for, Axis Movement, Delay, Digital Output, Digital Input, Analog Output, PWM
• DLL for Windows 7 32bit / 64bit, Windows 10 32bit / 64bit for user Application.

Details :

• Super Speed USB3.0 Connection
• Transfer Data Rate up to 5 Gbit/s (625 MB/s)
• Xilinx Spartan- 6 FPGA
• Individual Pulse, Direction, Home Sense, Alarm Sense, End Limit Positive, End Limit Negative, Software Limits, High Speed Limit
• All Sensors and Limits Logic can be changed through Programming
• All Sensors and Limits can be Enable or Disable.
• 8 Digital Inputs
• 8 Digital Outputs
• 1 Analog Output ( 0 to 10 V)
• 1 PWM Output
• 2 Axis and 3 Axis Interpolation
• Buffer Run Command for, Axis Movement, Delay, Digital Output, Digital Input, Analog Output, PWM
• DLL for Windows 7 32bit / 64bit, Windows 10 32bit / 64bit for user Application.

GENERAL FACILITIES

• Super Speed USB3.0 Connection
• Transfer Data Rate up to 5 Gbit/s (625 MB/s)
• Xilinx Spartan- 6 FPGA
• Individual Pulse, Direction, Home Sense, Alarm Sense, End Limit Positive, End Limit Negative, Software Limits, High Speed Limit
• All Sensors and Limits Logic can be changed through Programming
• All Sensors and Limits can be Enable or Disable.
• 8 Digital Inputs
• 8 Digital Outputs
• 1 Analog Output ( 0 to 10 V)
• 1 PWM Output
• 2 Axis and 3 Axis Interpolation
• Buffer Run Command for, Axis Movement, Delay, Digital Output, Digital Input, Analog Output, PWM
• DLL for Windows 7 32bit / 64bit, Windows 10 32bit / 64bit for user Application.

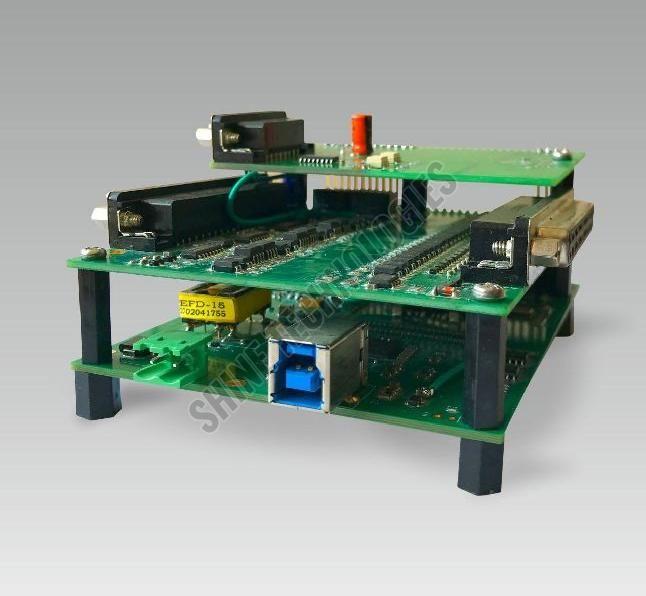

GALVO

• Supports XY2-100 Protocol
• Interpolation in Galvo Possible
• Speed Control of Galvo Speed
• Run in Buffer Command
• Read the Galvo Movement Status
• Control Through 15pin D-sub Connector

FIBER CONTROL

• Supports Industries Most Fiber
• Control Through External 25pin D- Sub Connector
• Frequency Setting
• Power Setting
• Emergency Stop / Release
• MO On/Off
• Laser On / Off
• Red Beam On / Off

We are widely acclaimed for providing Motion Control Card to our clients. We make available 2 Axis Motion Control Card, 4 Axis Motion Control Card and 8 Axis Motion Control Card to meet the diversified demands of the customers. Our Motion Control Card is reckoned for its performance and quality amidst our clients. 4 Axis Motion Control Card, provided by us, offers better linear and circular interpolated moves. The continuous contouring performance of 8 Axis Motion Control Card makes it ideal for advanced pulse train motion. We also offer customized Motion Control Card and have priced them reasonably.

Features

• 32-bit PCI bus, Rev. 2.2, 33MHz
• Pulse output rate up to 6.55MHz
• Pulse output options : OUT/DIR, CW/CCW, AB Phase
• 2~4 axes linear interpolation
• 2 axes circular interpolation
• Multi-axis continuous interpolation
• Position/Speed change on-the-fly
• 13 home return modes and auto home search
• Hardware position compare and trigger with auto-loading FIFO as buffer
• High speed position latch function
• Programmable acceleration and deceleration time
• Trapezoidal and S-curve velocity profiles
• 28-bit up/down counter for incremental encoder Multi-axis
• Simultaneous start/stop Programmable interrupt sources
• Support up to 12 cards in one system
• Hardware backlash compensator
• Software limit function
• Easy interface to any stepping motors, AC or DC servo, linear or rotary motors
• All digital inputs and outputs are 2500VRMS isolated
• Manual pulser input interface
• More than 250 thread safe API functions
• Software Support OF AXIS CONTROL CARD SUPPLIER
• Available for Windows XP/Vista32/XP/2000,WIN7
• VB/VC++/BCB/Delphi are recommended programming environment
• Various sample programs with source codes
• Customized API functions are possible
• RTX ( Windows Real Time Extension)
• RTX 5.x/6.x
• MotionCreatorPro-assists the motion system developer to debug any cabling problem, and solve the difficulty of system configuration before programming
• Linux Platform.
• Applications Axis Control Card Supplier
• Semiconductor front & back end equipment TFT/LCD manufacturing equipment
• Electronic Assembly and Testing equipment Automatic
• Optical Inspection Equipment
• Flight/Vehicle Simulator in military and video game
• Dispenser Machinery
• Precision motion axis control machines.
